| System | OS | Embedded Linux | ||
| Video | Analog Video Input | BNC × 32 | ||
| BNC interface (1.0Vp-p; 75Ω) | ||||
| TVI/ AHD/CVI : 5MP/ 4MP/ 1080P/ 720P/ WD1 | ||||
| IP Video Input | 8CH(up to 24CH) | |||
| Up to 5MP@30fps | ||||
| Total Input | 40CH | |||
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |||
| VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||||
| BNC × 1 : CVBS ( used as the main or spot output ) | ||||
| Compression | H.264/H.265 | |||
| Multi-screen Display | 1/4/6/8/9/13/16/25/32/36 | |||
| Audio | Input | RCA × 16 | ||
| Output | RCA × 1 (linear, 600Ω) | |||
| Two-way audio | Take up channel one audio input | |||
| Compression | G.711(U/A) | |||
| Record | Resolution | 5MP / 4MP / 1080P/ 720P/ WD1 | ||
| Bit Rate | 32Kbps ~ 5Mbps | |||
| Mode | Manual, timer, motion, smart event | |||
| Playback | Playback | 16CH | ||
| Search | Time slice / time / event / tag search | |||
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |||
| Function | Play, pause, FF, FB, digital zoom, etc. | |||
| Alarm | Mode | Manual, motion, exception, smart event | ||
| Input | 16CH | |||
| Output | 4CH | |||
| Network | Interface | RJ 45 100Mbps × 1 | ||
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP | |||
| Incoming Bandwidth | 40Mbps | |||
| Outgoing Bandwidth | 160Mbps | |||
| Client Connection | Max. 15 users access | |||
| Mobile Device | OS | iOS, Andriod | ||
| Storage | HDD | SATA×4, up to 10TB per HDD; E-SATA×1 | ||
| Backup | Local Backup | U disk, USB mobile HDD | ||
| Network Backup | Yes | |||
| Port | RS 485 | Yes (full-duplex), connect to PTZ or keyboard | ||
| USB | USB 2.0 × 1; USB 3.0 × 1 | |||
| Remote Controller | Optional | |||
| Others | Power Supply | ATX-250W | ||
| Consumption | ≤30W( without HDD) | |||
| Dimensions(mm) | 440 × 390 × 70 ( W × D × H ) | |||
| Working Environment | -10~50°C, 10%~90% (humidity) | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |||

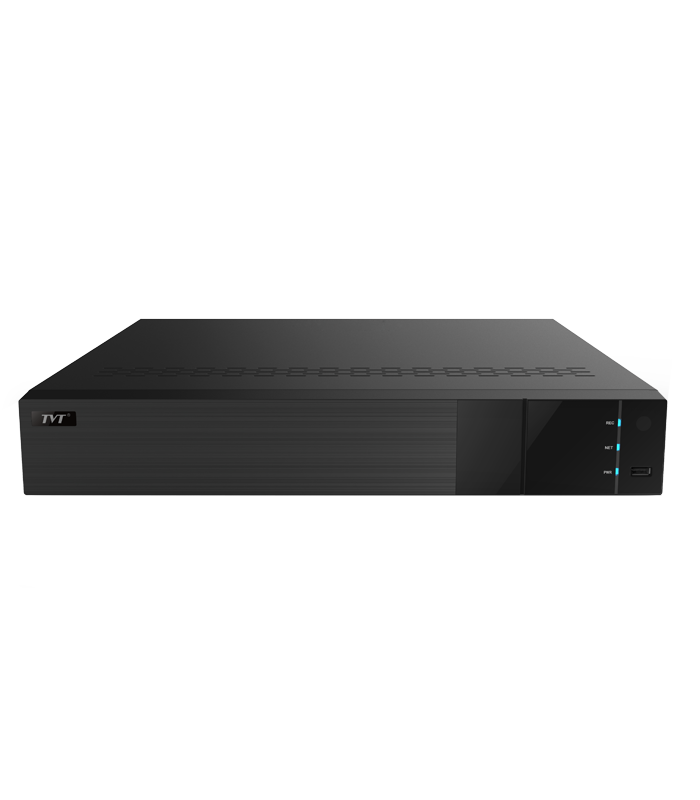

Regjistrues DVR TVT 5MP 32CH
Next product
Regjistrues DVR TVT 8MP 4CH
140,00 €
700,00 €
In Stock
Highlight
- Kompresimi i videos : H.265
- Kamerat e mbështetura: TVI/CVBS/AHD/HDCVI/IP
- IP Kamerat e mbështetura : 8CH
- Rezolucioni i daljes : Dalje 1HDMI/1VGA
- Mbështetja e diskut të HDD : SATA × 4 deri në 10 TB për HDD
Description
