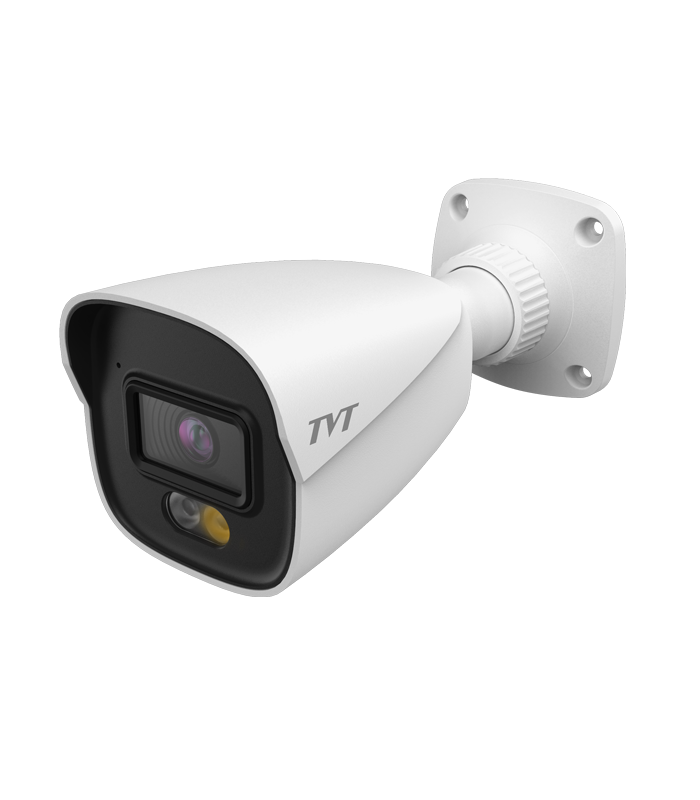

| Model | TD-9481S4-C | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 “CMOS | |||
| Image Size | 3840×2160 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.02 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| Lens | [email protected], Horizontal FoV: 106°;Vertical FoV:57°;Diagonal FoV:124° [email protected], Horizontal FoV:90°;Vertical FoV:47°;Diagonal FoV:107° |
|||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|||
| H.265 Compression Standard | Main [email protected] High Tier | |||
| Resolution | 8MP(3840×2160),6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640× 360, 480× 240, CIF |
|||
| Main Stream | 60Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~30fps) 50Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~25fps) |
|||
| Sub Stream | 720P/D1/VGA/640×360/CIF/480× 240 (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Third Stream | 720P/D1/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~12Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|||
| Audio Compression | G711A/U | |||
| ROI | 8ROI, Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card full, SD card error, IP address conflict, cable disconnection, video exception (scene change, video blur and abnormal color detection) |
|||
| Smart Event | Line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, system config backup, smart supplement light, corridor pattern, image distortion correction |
|||
| PoE | Yes (IEEE802.3af) | |||
| Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | |||
| Ingress Protection | IP67 | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication,basic and digest authentication for HTTP |
|||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 79m(259ft) | 32m(105ft) | 16m(52ft) | 8m(27ft) |
| 3.6mm | 99m(325ft) | 40m(130ft) | 20m(68ft) | 10m(34ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 7W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 167.6 × 75 × 74.6 | |||
| Weight ( net ) | Approx. 0.42KG | |||
| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
Kamera IP TVT 8MP
Previous product
Kamera IP TVT 6MP AI
172,00 €
Next product
Kamera IP TVT 8MP
196,00 €
174,00 €
In Stock
Highlight
- Rezolucioni : [email protected]+
- Lente : Lente fikse 2.8 mm
- Vizioni i natës : 30 metra (Dual IR & FullColor)
- Mbështetje audio : Mikrofoni i integruar
- Mbështetje POE : Po
- Mbështetje për analizën inteligjente : Line crossing detection, Region intrusion detection,abandoned/missing object detection, Video exception detection
Estimated Delivery:
16 November - 20 November
Description
