| Model | TD-9421S4L-C | |||
| Camera | ||||
| Image Sensor | 1 / 3 “CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.02 lux @F2.2, AGC ON; 0 lux (Illumination on) | |||
| Lens | [email protected], Horizontal FoV: 95°;Vertical FoV:55°;Diagonal FoV:109° [email protected], Horizontal FoV:75°;Vertical FoV:41°;Diagonal FoV:86° |
|||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 41m(133ft) | 17m(55ft) | 8m(26ft) | 4m(13ft) |
| 3.6mm | 58m(190ft) | 23m(75ft) | 12m(39ft) | 6m(19ft) |
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG |
|||
| H.265 Compression Standard | Main [email protected] High Tier | |||
| Resolution | 1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 480×240, CIF | |||
| Main Stream | 1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~ 3 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A/U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Motion Detection | Support smart motion detection; filtering motion alarm triggered by other target types except humans. | |||
| Smart Event | (Human) region intrusion detection, (human)line crossing detection | |||
| General Function | Watermark, video mask, heartbeat | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | |||
| PoE | Yes, IEEE802.3af | |||
| Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 5W | |||
| Operating Environment | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 162.1 × 74.8 × 73.8 | |||
| Weight ( net ) | Approx. 0.365KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||

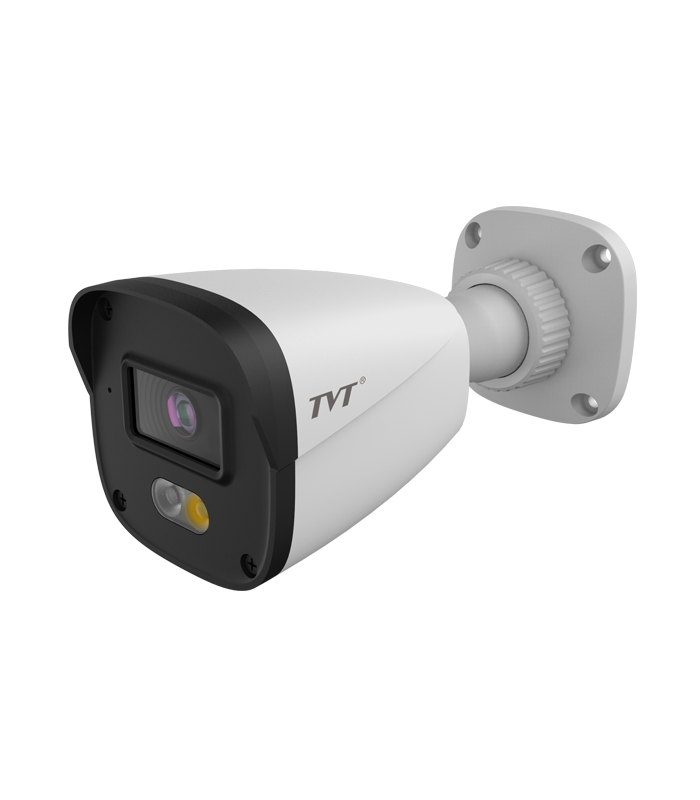

Kamera IP TVT 2MP
Previous product
Kamera IP TVT 2MP Eco
Login to see price
Next product
Kamera IP TVT 2MP
Login to see price
In Stock
Highlight
- Rezolucioni : [email protected]+
- Lente : Lente fikse 2.8 mm
- Vizioni i natës : 30 metra (Dual IR & FullColor)
- Mbështetje audio : Mikrofoni i integruar
- Mbështetje POE : Po
- Mbështetje për analizën inteligjente : Line crossing detection & Region intrusion detection
Estimated Delivery:
29 October - 31 October
Description
