| Camera Module | TD-8443IS2N(PE/25M/AR15) | TD-8443IS2N(PE/25M/AR16) | ||
| Image sensor | 1/2.5”BSI+NIR progressive scan CMOS | 1/2.7”BSI+NIR progressive scan CMOS | ||
| Pixel size | 2.2um | 2.0um | ||
| Effective Pixels | 2592(H)x1944(V) | 2884(H)x1624(V) | ||
| Mini. Illumination | Color：0.01Lux @ (F1.65，AGC ON)；B/W：0.002Lux @(F1.65，AGC ON);0Lux with IR | |||
| Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by client | |||
| Shutter Speed | 50Hz: 1/25s ~1/25,000s; 60Hz: 1/30s ~ 1/30,000s | |||
| White Balance | Auto/Manual/Indoor/Outdoor | |||
| Gain control | Auto/Manual | |||
| Day & Night control | Auto/Manual ,time schedule | |||
| Iris control | Auto/Manual | |||
| SNR | ≥52dB | |||
| 3D DNR | Auto/Manual | |||
| AE Enhancement | BLC, HLC, WDR | |||
| Privacy Mask | 4 areas, up to 4 mask in the same frame | |||
| Picture overlay | Logo picture could be overlaid on video with 128x128pixels,24bits BMP format | |||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color | |||
| Lens | ||||
| Focus length | f=4.8-120mm lens,25x optical zoom | |||
| Zoom Speed | Approx. 3.6s (optical zoom, wide-tele) | |||
| Field of View | Horizontal: 55° ~2.4°±5%; Vertical: 33° ~ 1.4°±5%; Diagonal: 61.5° ~ 2.8°±5% (wide-tele) | |||
| Working distance | Wide: 1.0m ~ INF; tele: 1.5m ~ INF | |||
| Aperture Range | F1.65 ~ F3.8 (wide-tele) | |||
| Iris type | Auto DC-IRIS, 16 Stops | |||
| IRCut type | Removable IRCut filter | |||
| DORI distance | Detect(25px/m) | Observe(63px/m) | Recognize(125px/m) | Identify(250px/m) |
| 2400m(7874 f.t.) | 952m(3124 f.t.) | 480m(1772 f.t.) | 240m(787 f.t.) | |
| PTZ | ||||
| Pan Range | 360°endless | |||
| Pan speed | Configurable, from 0.1~200°/s; Preset speed: 240°/s | |||
| Tilt Range | From -5° to 90°,auto flip | |||
| Tilt Speed | Configurable, from 0.1°~ 200°/s, Preset speed: 240°/s | |||
| Proportional Zoom | Yes | |||
| Preset | 360 | |||
| Cruise | 8 cruises, up to 16 presets for each cruises | |||
| Trace | 4 traces, record time over 3 minutes for each trace | |||
| Power off memory | Support | |||
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | |||
| 3D Positioning | Support | |||
| PTZ Position Display | Support | |||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot | |||
| IR | ||||
| IR Distance | 150m (492 f.t.) | 160m(525 f.t.) | ||
| Smart IR | Yes | |||
| Network | ||||
| Max Resolution | 2560×1440 (16:9 aspect ratio, | |||
| Main stream | 50Hz: 25fps: 2560×1440,1920×1080,1280×960,1280×720; 60Hz: 30fps: 2560×1440,1920×1080,1280×960,1280×720 | |||
| Sub stream | 50Hz: 25fps: (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |||
| Third Stream | 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) | |||
| 60Hz:30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | ||||
| Video compression | H.265/H.264+/H.264/MJPEG | |||
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | |||
| H.265 Standard | H.265/HEVC codec MP, level 5.0 | |||
| Video Bit Rate | 64Kbps to 8Mbps | |||
| Audio compression | G.711 A/U | |||
| Audio Bit Rate | 64K bps | |||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE | |||
| Simultaneous live view | Up to 6 channels | |||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | |||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | |||
| Smart Features | ||||
| Basic event | Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error) | |||
| Face recognize | Detecting max 15 faces at same scene. Detecting, tracking, capturing | |||
| Road traffic | Vehicle detecting and tracking | |||
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, etc. | |||
| Smart Tracking | smart tracking of human or vehicle, auto/manual | |||
| System Integration | ||||
| Alarm Interface | 1 Alarm input(Dry contact); 1 Alarm output | |||
| Audio Interface | 1 audio input(MIC in); 1 audio output, line level, impedance,600Ω | |||
| Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Upload to FTP/Memory Card, Send Email, etc. | |||
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet ,Support PoE+( 802.3.at,class 6) | |||
| SD Card Slot | One MicroSD slot, up to 256G | |||
| RS 485 | N/A | |||
| BNC | N/A | |||
| Speaker | N/A | |||
| Reset button | Yes | |||
| Heater | Yes | |||
| Fan | Yes | |||
| Water removal | Remove water-drops by quick spinning | |||
| API | ONVIF, support TVT SDK and third-party management platform | |||
| Client | TVT N9000 1.4.5, TVT NVMS 2.0; and the third-party client | |||
| Web Browser | IE8-11 | |||
| General | ||||
| Culture | 16 languages: Czech; English, German ; Hungarian ; Italian ; Japanese ; Korean ; Portuguese, Polish; Russian, Romanian, Spanish; Spanish(Mexico);Simplified Chinese; Turkish; Traditional Chinese. | |||
| Power Supply | DC12V±25%,3000mA ,PoE+ (802.3.at, class 3), max 23W include IR ON+PTZ working | |||
| Working condition | -40°C ~ 60°C (-40°F ~ 140°F), Cold start at – 30°C(30minutes waiting); 90%RH | |||
| Storage condition | -40°C ~ 70°C ; ≤ 95% RH | |||
| Protection | IP66, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |||
| Material | Aluminum Alloy + Plastic/GF15% | |||
| Dimensions | Φ 173mm × 268mm (Φ6.8 inch × 10.5 inch) | |||
| Weight | Approx. 2.1 Kg (4.63 lb.) | |||
| Certification | IP66,IK10(excluding glass window),ROHS,CE,FC | |||

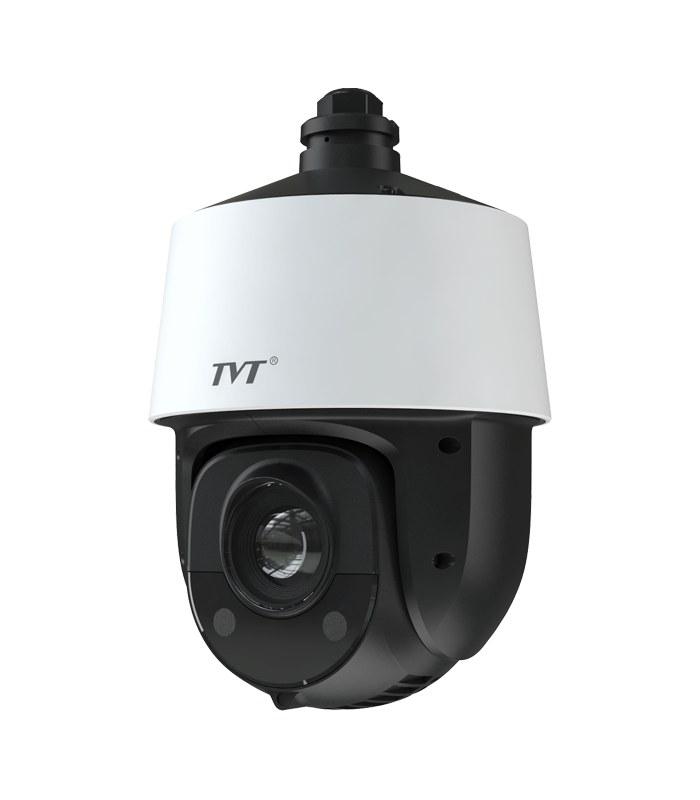

Kamera IP TVT 4MP PTZ
Previous product
Kamera IP TVT 2MP
53,00 €
Next product
Kamera IP TVT 4MP Mini PTZ
286,00 €
748,00 €
In Stock
Highlight
- Rezolucioni : [email protected]+
- Lente : Lente 4.8 mm – 120 mm E motorizuar
- Vizioni i natës : 160 metra
- Mbështetje audio : Mikrofoni i integruar
- Zmadhimi optik 25x
- Mbështetje për analizën inteligjente : Smart tracking of human/vehicle , Intelligent Video content analytics
Estimated Delivery:
09 April - 11 April
